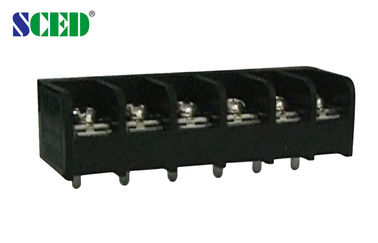

Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block

Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block

Products - Barrier Terminal Block
  • Highlight

    barrier type terminal block

    ,

    pcb terminal blocks

  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE,CQC
  • Model Number
    TB1100-04
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block

  • Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block
  • Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block
Get Price Contact Now

Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block


Parameter and Drawing Specifications:

UL Technical DataBCD
Rated Voltage / Current V/A300 / 30 300 / 10
Wire Range AWG10-22 10-22
IEC Technical Data
Overvoltage CategoryⅢⅢⅡ
Contamination Class322
Rated Voltage / Current V/A630 / 41800 / 411000 / 41
Rated Surge Voltage KV666
Rated Connecting Capacity mm26
Material
Insulation Material / Inflammability ClassPBT / UL94, V-0
Terminal / PlatingBrass /Tin Plated
Screw / PlatingSteel / Nickel Plated
Other Data
PCB Hole Diameter mmφ2.6
Stripping Length mm9-10
Screw / Torque / lbf.inM 4 / 10-13




Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block 0


Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:



Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block 1

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Barrier Terminal block Pitch 11.10mm 300V 30A 2 - 18P power terminal block 2
