10A PCB Screw Terminal Block

10A PCB Screw Terminal Block

Products - PCB Screw Terminal Block
  • Highlight

    300V 10A PCB Screw Terminal Block

    ,

    PCB Screw Terminal Block 24P

    ,

    Server Site PCB Screw Terminal Block

  • Type
    PCB Screw Terminal Block,Electrical Terminal Blocks, Euro Raising Terminal Blocks
  • Pitch
    5.08mm
  • Number Of Contacts
    2P-24P
  • Wire Range
    12-26
  • Rated Voltage
    300V
  • Rated Current
    10A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ508-02
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

10A PCB Screw Terminal Block

  • 10A PCB Screw Terminal Block
  • 10A PCB Screw Terminal Block
Get Price Contact Now

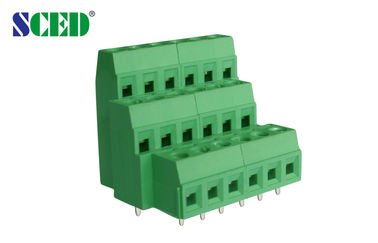

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks – Euro type Raising series



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

□Single Deck;  □Double decks;  ■Triple decks

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.





How to order:

10A PCB Screw Terminal Block 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

1.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3







10A PCB Screw Terminal Block 1

Competitive Advantage:



  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
