Feed Through Panel Mount Terminal Block

Feed Through Panel Mount Terminal Block

Products - Panel Mount Terminal Block
  • Highlight

    Feed Through Terminal Block

    ,

    Panel Mount Terminal Block

  • Type
    Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block
  • Pitch
    14.50mm
  • Number Of Contacts
    2P-16P
  • Wire Range
    6-24
  • Rated Voltage
    600V
  • Rated Current
    65A
  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR-10N-01
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

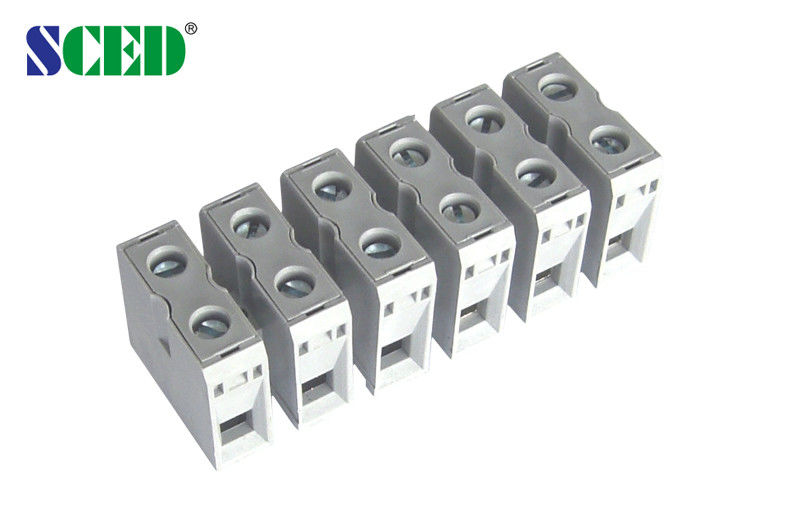

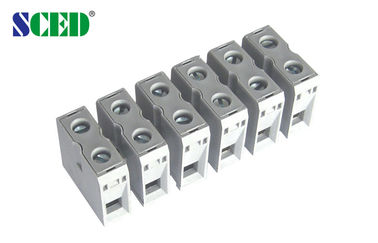

Feed Through Panel Mount Terminal Block

  • Feed Through Panel Mount Terminal Block
  • Feed Through Panel Mount Terminal Block
Get Price Contact Now

PCB Through Panel Mount Terminal Blocks With 45 Degree Wire Inlet , 14.50mm 600V 65A

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.



How to order:
Feed Through Panel Mount Terminal Block 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 65

600 /65

600 / 5

Wire Range                       AWG

6-24

6-24

6-24

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 65

1000 / 65

1000 / 65

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

10

Material



Insulation Material / Inflammability Class

PA66/ UL94, V-0

Conduction Board Plating

Copper / Nickel Plated

Clamp Cage Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

9-10

Screw / Torque                    / lbf.in

M 5 / 10.6-13




Feed Through Panel Mount Terminal Block 1
Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
