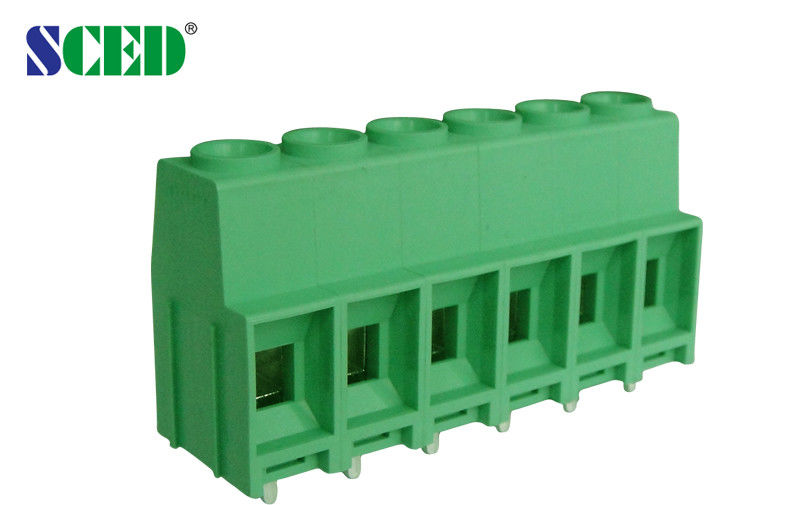

Pitch 10.16mm Power Terminal Blocks, 300V 57A 2P - 16P PCB Screw Terminal Block
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 57 |
300 / 57 |
|
|
Wire Range AWG |
6-22 |
6-22 |
|
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
630 / 57 |
1000 / 57 |
1000 / 57 |
|
Rated Surge Voltage KV |
8 |
8 |
6 |
|
Rated Connecting Capacity mm2 |
10 |
||
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Clamp Cage / Plating |
Brass / Nickel Plated |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Screw / Plating |
Steel / Zinc Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
φ2.2 |
||
|
Stripping Length mm |
9-11 |
||
|
Screw / Torque / lbf.in |
M3 / 10.6-13.0 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
