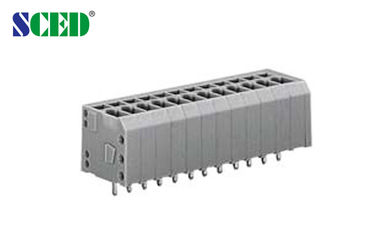

300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks

300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks

Products - Spring Terminal Block
  • Highlight

    spring clamp terminal block

    ,

    pcb spring terminal block

  • Color
    Grey
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Number Of Contacts
    2P-24P
  • Pitch
    5.08mm
  • Color
    Grey
  • Number Of Contacts
    2P-24P
  • Rated Current
    12A
  • Rated Voltage
    300V
  • Pitch
    5.08mm
  • Type
    Spring Terminal Block,Screwless Terminal Blocks, Electrical Terminal Blocks
  • Rated Current
    12A
  • Rated Voltage
    300V
  • Type
    Spring Terminal Block,Screwless Terminal Blocks, Electrical Terminal Blocks
  • Wire Range
    12-28
  • Wire Range
    12-28
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ508-11
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks

  • 300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks
  • 300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks
Get Price Contact Now



300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks







□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet

■Single Deck;  □Double decks;  □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

PCB spring terminal blocks, Spring Clamp terminal blocks, Screwless terminal blocks, Electrical terminal Blocks, terminal block factory





How to order:
300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks 0

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300/12





Wire Range                       AWG

12-28





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

φ1.6

Stripping Length                    mm

8-9





300 Volt 12A spring clamp Terminal Block , 5.08mm Screwless Terminal Blocks 1



Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
