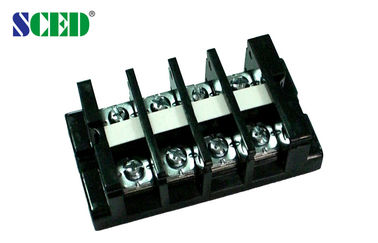

Pitch 18.00mm High Current Power Terminal Block Connector With Any Poles 600V 60A

Pitch 18.00mm High Current Power Terminal Block Connector With Any Poles 600V 60A

  • Highlight

    plug in terminal block connector

    ,

    pcb terminal block connector

  • Type
    Terminal Block Connector,Terminal Block Connectors, PCB Connectors
  • Pitch
    18.00mm
  • Number Of Contacts
    Any Poles Available
  • Wire Range
    4-20
  • Rated Voltage
    600V
  • Rated Current
    60A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TR60-03-BM0
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pitch 18.00mm High Current Power Terminal Block Connector With Any Poles 600V 60A

Detailed product Description:

Pitch 18.00mm High Current Power Terminal Block Connector With Any Poles 600V 60A



■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double levels;  □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Through Wall terminal blocks, Bulkhead connectors, Feed Through connectors, Electrical terminal Blocks, terminal block connectors




How to order:

Pitch 18.00mm High Current Power Terminal Block Connector With Any Poles 600V 60A 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 60

600 / 60



Wire Range                       AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 /60

1000 / 60

1000 / 60

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

14

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Conduction Board/ Plating

Brass /Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                  mm

12-15

Screw Torque                    mm

M6 / 18-22







Pitch 18.00mm High Current Power Terminal Block Connector With Any Poles 600V 60A 1


Competitive Advantage:


1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
