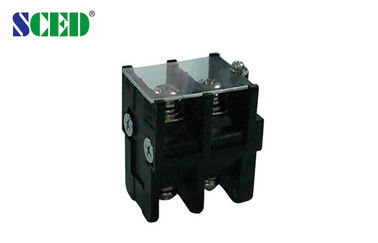

High Voltage Feed Through Panel Terminal Block Connectors 101A Pitch 16.0mm

High Voltage Feed Through Panel Terminal Block Connectors 101A Pitch 16.0mm

Products - Feed Through Terminal Block
  • Highlight

    pcb terminal block connectors

    ,

    pcb mount terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Black
  • Number Of Contacts
    Any Poles Available
  • Pitch
    16.0mm
  • Rated Current
    101A
  • Rated Voltage
    600V
  • Type
    Feed Through Terminal Block,Feed Through Terminal Blocks, Feed Through Terminal Connectors
  • Wire Range
    2-10
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD75-02-C
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

High Voltage Feed Through Panel Terminal Block Connectors 101A Pitch 16.0mm

  • High Voltage Feed Through Panel Terminal Block Connectors 101A Pitch 16.0mm
  • High Voltage Feed Through Panel Terminal Block Connectors 101A Pitch 16.0mm
Get Price Contact Now





High Voltage Feed Through Panel Terminal Block Connectors 101A Pitch 16.0mm

Terminal Connectors

■Single Deck;  □Double decks;  □Triple decks
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors

How to order:
High Voltage Feed Through Panel Terminal Block Connectors 101A Pitch 16.0mm 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 101



300 / 10

Wire Range                       AWG

2-10



2-10

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

320 / 101

400 / 101

630 / 101

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

25

Material



Insulation Material / Inflammability Class

PBT / UL94, V-0

Conduction Board / Plating

Copper / Nickel Plated

Screw / Plating

Steel / Nickel Plated

Other Data



Stripping Length                    mm

12-13

Screw / Torque                    / lbf.in

M6 / 20-22



High Voltage Feed Through Panel Terminal Block Connectors 101A Pitch 16.0mm 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
