5.08mm Through Panel Terminal Block , 300V 18A 2-22P Male Pluggable Terminal Block

5.08mm Through Panel Terminal Block , 300V 18A 2-22P Male Pluggable Terminal Block

Products - Pluggable Terminal Block
  • Highlight

    pluggable terminal block connector

    ,

    electrical terminal blocks

  • Wire Inlet
    Vertical Wire Inlet
  • Type
    Pluggable Terminal Block,Pluggable Terminal Blocks, Plug-in Terminal Blocks
  • Pitch
    5.08mm
  • Number Of Contacts
    2P-22P
  • Rated Voltage
    300V
  • Rated Current
    18A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP508H-02F
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

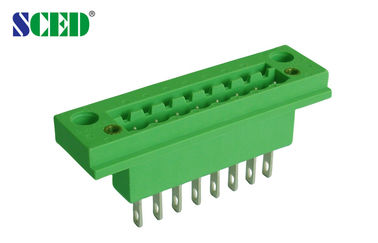

5.08mm Through Panel Terminal Block , 300V 18A 2-22P Male Pluggable Terminal Block

  • 5.08mm Through Panel Terminal Block , 300V 18A 2-22P Male Pluggable Terminal Block
  • 5.08mm Through Panel Terminal Block , 300V 18A 2-22P Male Pluggable Terminal Block
Get Price Contact Now

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..




Header, Male Sockets, Through Panel Design, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

□Right angle wire inlet;  ■Vertical wire inlet;  □45 degree wire inlet
■Single Level;  □Double Levels;  □Triple Levels

This male header match with female plugs’ series: TP508P-00F, TP508P-02F, TP508P-03F, TP508P-04F, TP508P-05F, TP508P-07F

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
