Detailed product Description:

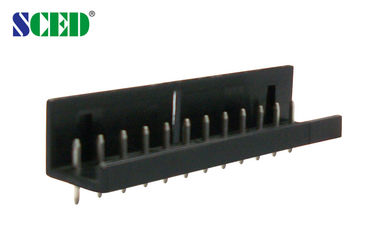

Header, Male Sockets, Pitch: 5.08mm, 300V 10A, 2P-24P, Pluggable Terminal Blocks, Plug-in Terminal Blocks
□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels
This male header match with female plugs’ series: TP508P-08
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
|
UL Technical Data |
B |
C |
D |
|
Rated Voltage / Current V/A |
300 / 10 |
300 / 10 |
300 / 10 |
|
IEC Technical Data |
|
||
|
Overvoltage Category |
Ⅲ |
Ⅲ |
Ⅱ |
|
Contamination Class |
3 |
2 |
2 |
|
Rated Voltage / Current V/A |
250 / 18 |
400 / 18 |
500 / 18 |
|
Rated Surge Voltage KV |
4 |
4 |
4 |
|
Material |
|
||
|
Insulation Material / Inflammability Class |
PA66 / UL94, V-0 |
||
|
Terminal / Plating |
Brass / Tin Plated |
||
|
Other Data |
|
||
|
PCB Hole Diameter mm |
1.4 |
||
|
Pin Dimension mm |
1.0*1.0 |
||
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
Our services cover all industries and reach all parts of the world.
