Pluggable electrical Terminal Block ConnectorS 5.00mm Pitch 2P - 20P Male Pins

Pluggable electrical Terminal Block ConnectorS 5.00mm Pitch 2P - 20P Male Pins

Products - Terminal Block Connector
  • Highlight

    plug in terminal block connector

    ,

    barrier terminal block connector

  • Type
    Terminal Block Connector,Terminal Block Connectors, PCB Connectors
  • Pitch
    5.00mm
  • Number Of Contacts
    2-20P
  • Rated Voltage
    300V
  • Rated Current
    18A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Level
    Single Level
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TP500H-01
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Pluggable electrical Terminal Block ConnectorS 5.00mm Pitch 2P - 20P Male Pins

  • Pluggable electrical Terminal Block ConnectorS 5.00mm Pitch 2P - 20P Male Pins
  • Pluggable electrical Terminal Block ConnectorS 5.00mm Pitch 2P - 20P Male Pins
Get Price Contact Now

Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..





Detailed product Description:

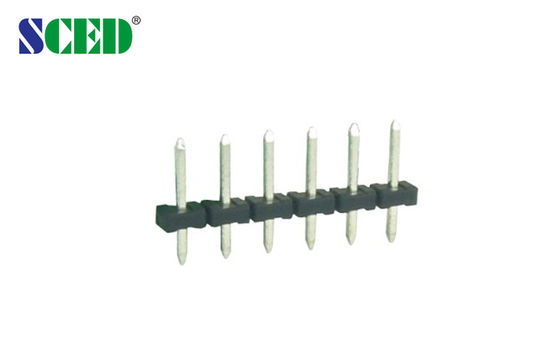

Header, Male Pins, Pitch: 5.00mm, 300V 18A, 2-20P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



■Single Level;  □Double Levels;  □Triple Levels



This male pin match with female plugs’ series: TP500P-01, TP500P-02



Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Pluggable terminal blocks, Plug in terminal blocks, Electrical terminal Blocks







How to order:



Pluggable electrical Terminal Block ConnectorS 5.00mm Pitch 2P - 20P Male Pins 0





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 18



300 / 18

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 18

320 / 18

320 / 18

Rated Surge Voltage                 KV

4

4

4

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data



PCB Hole Diameter                  mm

∮1.5

Pin Dimension                      mm

∮1.3









Pluggable electrical Terminal Block ConnectorS 5.00mm Pitch 2P - 20P Male Pins 1







Competitive Advantage:



1.    Stable good quality

2.    Competitive price

3.    Quickly response

4.    Full range products for selection

5.    Flexible to design the exact part per customers’ demand
