Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 65 | 600 /65 | 600 / 5 |
Wire Range AWG | 6-24 | 6-24 | 6-24 |
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 65 | 1000 / 65 | 1000 / 65 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 10 | ||
Material |
| ||
Insulation Material / Inflammability Class | PA66/ UL94, V-0 | ||
Conduction Board Plating | Copper / Nickel Plated | ||
Clamp Cage Plating | Brass / Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 9-10 | ||
Screw / Torque / lbf.in | M 5 / 10.6-13 | ||

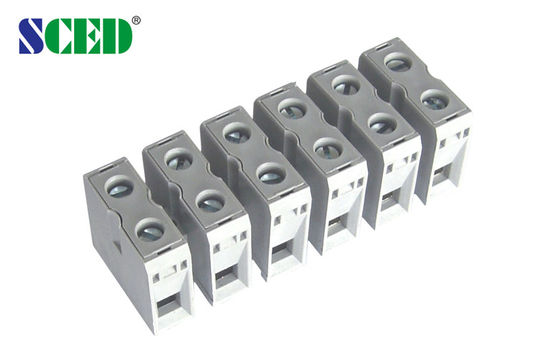

PCB Through Panel Mount Terminal Blocks With 45 Degree Wire Inlet , 14.50mm 600V 65A
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Feed through terminal blocks, Feed through terminal connectors, penal mount terminal block, Electrical terminal Blocks
