Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

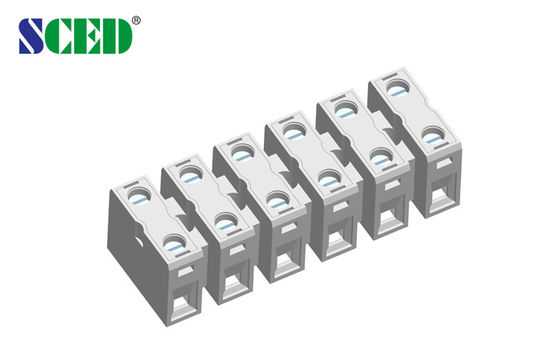

Feed Through Panel Terminal Blocks , Pitch 10.00mm 600V 20A 2 - 16P
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks
How to order:
Parameter and Drawing Specifications:
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600 / 20 | 600 / 20 |
|
Wire Range AWG | 12-28 | 12-28 |
|
IEC Technical Data |
| ||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 32 | 1000 / 32 | 1000 / 32 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 4 | ||
Material |
| ||
Insulation Material / Inflammability Class | PL/ UL94, V-0 | ||
Conduction Board Plating | Cooper/Nickel Plated | ||
Clamp Cage Plating | Brass / Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data |
| ||
Stripping Length mm | 5-6 | ||
Screw / Torque / lbf.in | M 3 / 4.4-5.3 | ||
