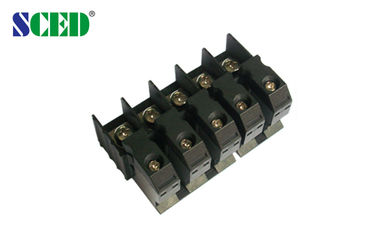

Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A

Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A

Products - Panel Mount Terminal Block
  • Highlight

    pcb mount terminal blocks

    ,

    power distribution terminal

  • Type
    Panel Mount Terminal Block,Barrier Terminal Blocks, Power Terminal Blocks, Electrical Terminal Block
  • Pitch
    15.0mm
  • Number Of Contacts
    2P-12P
  • Wire Range
    4-20
  • Rated Voltage
    600V
  • Rated Current
    90A
  • Color
    Black
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TD90-00
  • Minimum Order Quantity
    200
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A

  • Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A
  • Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A
Get Price Contact Now

Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm, 2P - 12P 600V 90A


Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Feed through terminal blocks, Feed through terminal connectors, through wall terminal block, Electrical terminal Blocks



How to order:
Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A 0

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..


Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 90

600 / 90



Wire Range                       AWG

4-20

4-20



IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 90

1000 / 90

1000 / 90

Rated Surge Voltage                 KV

8

8

6

Rated Connecting Capacity           mm2

16

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Conduction Board / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

10-12

Screw / Torque                    / lbf.in

M5 / 12-16




Feed Through Panel Mount Terminal Block Connector Pitch 15.0mm , 2P - 12P 600V 90A 1

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
