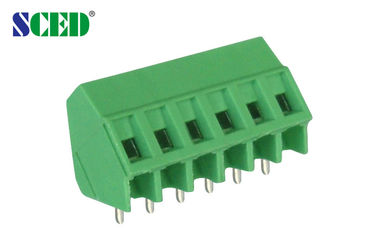

Single Deck Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P-24P 12-26 AWG

Single Deck Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P-24P 12-26 AWG

Products - PCB Screw Terminal Block
  • Highlight

    screw type terminal block

    ,

    screw connection terminal block

  • Type
    PCB Screw Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks
  • Pitch
    5.08mm
  • Number Of Contacts
    2P-24P
  • Wire Range
    12-26
  • Rated Voltage
    300V
  • Rated Current
    10A
  • Color
    Green
  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ508-03
  • Minimum Order Quantity
    500
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1KK poles each monthly

Single Deck Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P-24P 12-26 AWG

  • Single Deck Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P-24P 12-26 AWG
  • Single Deck Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P-24P 12-26 AWG
Get Price Contact Now


 Parameter and Drawing Specifications:


UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10



300 / 10

Wire Range                       AWG

12-26



12-26

IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

250 / 10

320 / 10

630 / 10

Rated Surge Voltage                 KV

4

4

4

Rated Connecting Capacity           mm2

2.5

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.4

Stripping Length                    mm

6-7

Screw / Torque                    / lbf.in

M3 / 4.4-5.3



 Single Deck Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P-24P 12-26 AWG Euro type Raising series

□Right angle wire inlet;  □Vertical wire inlet;  ■45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer


How to order:
Single Deck Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P-24P 12-26 AWG 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Single Deck Pitch 5.08mm PCB Screw Terminal Block 300V 10A 2P-24P 12-26 AWG 1

Competitive Advantage:


  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
