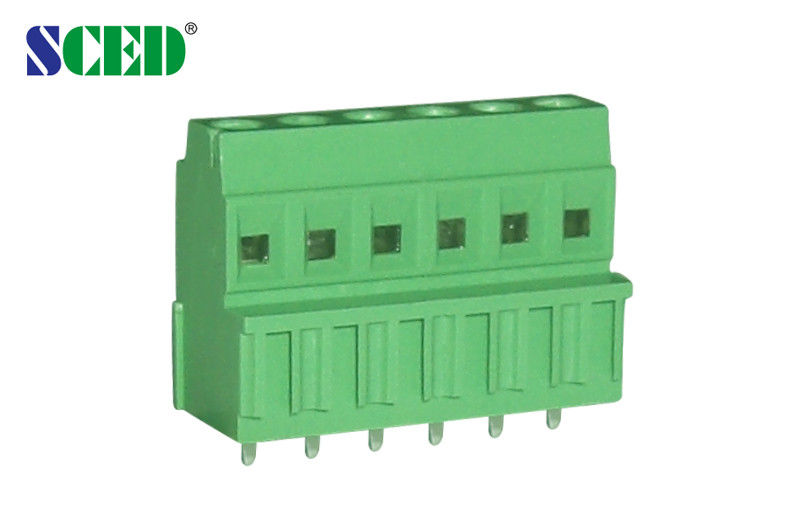

Green Plastic PCB Terminal Block Euro Style Pitch 3.81mm 300V 10A UL CE

Green Plastic PCB Terminal Block Euro Style Pitch 3.81mm 300V 10A UL CE

Products - PCB Terminal Block
  • Highlight

    pcb terminal block connectors

    ,

    pcb mount terminal block

  • Applications
    PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
  • Color
    Green
  • Number Of Contacts
    2P-28P
  • Pitch
    3.81mm
  • Rated Current
    10A
  • Rated Voltage
    300V
  • Type
    PCB Terminal Block,PCB Mount Terminal Blocks, PCB Screw Terminal Blocks
  • Wire Range
    16-24
  • Place of Origin
    Shenzhen, China
  • Brand Name
    SCED
  • Certification
    UL, CE
  • Model Number
    TJ381-02
  • Minimum Order Quantity
    500-1000
  • Price
    Get latest price
  • Packaging Details
    Standard Export Carton
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    1.2KK poles each monthly

Green Plastic PCB Terminal Block Euro Style Pitch 3.81mm 300V 10A UL CE

  • Green Plastic PCB Terminal Block Euro Style Pitch 3.81mm 300V 10A UL CE
  • Green Plastic PCB Terminal Block Euro Style Pitch 3.81mm 300V 10A UL CE
Get Price Contact Now

Green Plastic PCB Terminal Block Euro Style Pitch 3.81mm 300V 10A UL CE

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet
■Single Deck;  □Double decks;  □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer


How to order:
Green Plastic PCB Terminal Block Euro Style Pitch 3.81mm 300V 10A UL CE 0


Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..


Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current              V/A

300 / 10





Wire Range                       AWG

16-24





IEC Technical Data



Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current              V/A

160 / 10

200 / 10

400 / 10

Rated Surge Voltage                 KV

2.5

2.5

2.5

Rated Connecting Capacity           mm2

1.0

Material



Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data



PCB Hole Diameter                 mm

φ1.3

Stripping Length                    mm

4-5

Screw / Torque                    / lbf.in

M2 / 1.8-2.0



Green Plastic PCB Terminal Block Euro Style Pitch 3.81mm 300V 10A UL CE 1


Competitive Advantage:


1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
