Brass Female Connectors Plug In Terminal Block Pitch 7.62mm Single Level

Brass Female Connectors Plug In Terminal Block Pitch 7.62mm Single Level

Products - Plug In Terminal Block
  • Highlight

    Phosphor Bronze Plug In Terminal Block

    ,

    300V Plug In Terminal Block

    ,

    Pluggable Terminal Blocks 8A

  • Color
    Green
  • Pitch
    7.62mm
  • Type
    Plug In
  • Current
    8A
  • Voltage
    300V
  • Poles
    2-24 Poles
  • Insulation Material
    PA66
  • Screw
    M2
  • Torque
    2-2.2 Lbf.in
  • Clamp Cage
    Brass
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    CE,UL
  • Model Number
    TP508P-76
  • Minimum Order Quantity
    1000 Piece/Pieces
  • Price
    USD 0.06-0.12 PER Pole
  • Packaging Details
    Standard export packing carton, or according to customers demand.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

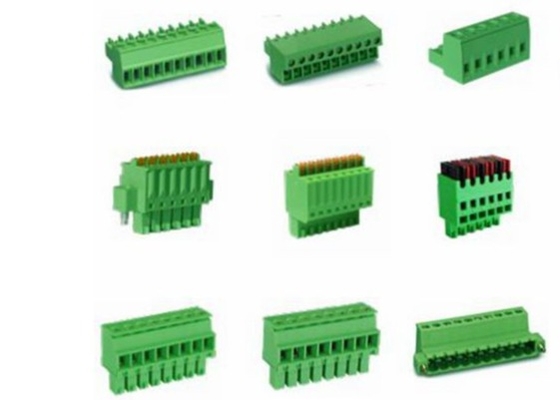

Brass Female Connectors Plug In Terminal Block Pitch 7.62mm Single Level

  • Brass Female Connectors Plug In Terminal Block Pitch 7.62mm Single Level
  • Brass Female Connectors Plug In Terminal Block Pitch 7.62mm Single Level
Get Price Contact Now

Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm



Detailed product Description:



Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks



This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V



Levels: ■Single Level



Standard color: Green.



Other colors also available, please refer to below How to Order and select the color you want.



How to order:



Brass Female Connectors Plug In Terminal Block Pitch 7.62mm Single Level 0



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.



Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 18   300 / 18
Wire Range AWG 12-30   12-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3



Competitive Advantage:



  1. High quality
  2. Reasonable price
  3. Full range products for selection
  4. Flexible to design the exact part per customers’ demand

Brass Female Connectors Plug In Terminal Block Pitch 7.62mm Single Level 1
