2-12 Poles Black 20A Barrier Power Terminal Blocks Brass PBT 11mm Pitch

2-12 Poles Black 20A Barrier Power Terminal Blocks Brass PBT 11mm Pitch

Products - Power Terminal Blocks
  • Highlight

    Frequency Converters Power Terminal Blocks

    ,

    PBT Plastic Power Terminal Blocks

    ,

    PBT Plastic Barrier Terminal Blocks

  • Torque
    10.6-13 Lbf.in
  • Screw
    M4
  • Stripping Length
    10-12mm
  • Plating
    Tin And Zinc Plated
  • Terminal
    Brass
  • Plastic
    PBT
  • Pitch
    11mm
  • Poles
    2-12 Poles
  • Current
    20A
  • Voltage
    600V
  • Place of Origin
    China
  • Brand Name
    SCED
  • Certification
    UL,CE,CUL,CQC and VDE etc.
  • Model Number
    TB1100-15
  • Minimum Order Quantity
    500 Piece/Pieces
  • Price
    USD 0.052-0.13 per Pole
  • Packaging Details
    Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
  • Delivery Time
    5-20 Working Days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000000 Pole/Poles per Month

2-12 Poles Black 20A Barrier Power Terminal Blocks Brass PBT 11mm Pitch

  • 2-12 Poles Black 20A Barrier Power Terminal Blocks Brass PBT 11mm Pitch
  • 2-12 Poles Black 20A Barrier Power Terminal Blocks Brass PBT 11mm Pitch
  • 2-12 Poles Black 20A Barrier Power Terminal Blocks Brass PBT 11mm Pitch
Get Price Contact Now

20A Barrier Power Terminal Blocks Black 2-12 Poles Brass PBT 11mm Pitch



Detailed product Description:



Pitch 11.10mm, 600V 20A, 2P-12P, Barrier Terminal blocks, power terminal blocks

Wire Inlet: ■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

Level: ■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.





How to order:



2-12 Poles Black 20A Barrier Power Terminal Blocks Brass PBT 11mm Pitch 0

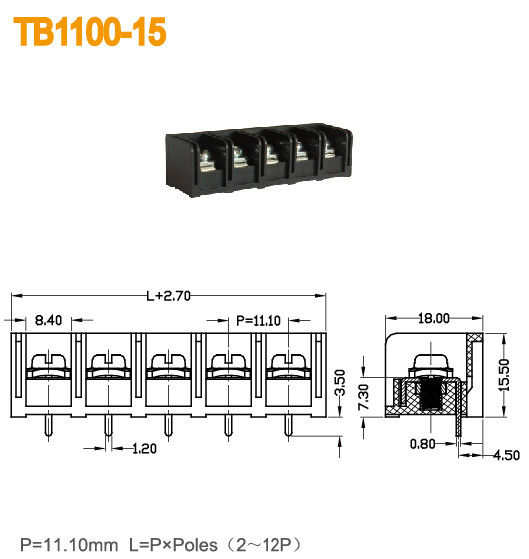

Parameter and Drawing Specifications:

UL Technical Data

B



 C D
Rated Voltage / Current V/A 600 / 20 600 / 20 600 / 5
Wire Range AWG 12-22 12 / 22 12-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 20 800 / 20 1000 / 20
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 1.5
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.8
Stripping Length mm 10-12
Screw / Torque / lbf.in M 4 / 10.6-13





Applications:



1. PCB, Frequency Converters, Server Site, Switch

2. Power Supply, Electric Lighting, Industry Control, Automation

3. Rail Transportation, Communication, Electric Power, Security, Medical Equipment, Military etc..



Competitive Advantage:



  1. High quality and competitive price
  2. Quickly response
  3. More than 1000 models for selection
  4. Flexible to design the exact part per customers’ demand

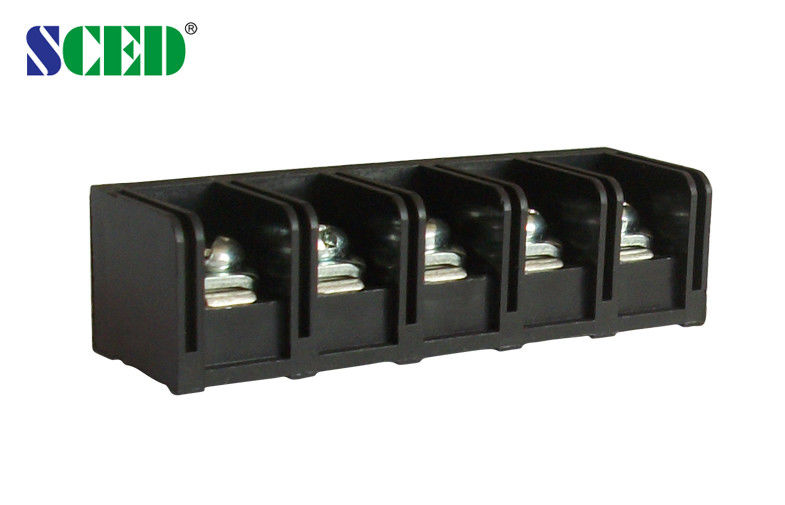

2-12 Poles Black 20A Barrier Power Terminal Blocks Brass PBT 11mm Pitch 1
